TRB1824DT051 / TRB1824DT
Air Disc Brakes
Double Diaphragm - Std Stroke - Parking Brakes
Breather Tube, Welded Mtg Bolts
Stock Status: In Stock
Price: $427.07
Service Size: 18
Spring Size: 24
Specs
Aftermarket Unit
Mounting Bolt Thread: M16 X 1.5
Mounting Bolt Length (in.): 1.710
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50
Double Diaphragm Air Disc Brake Features
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- 360 Aluminum Center Case
- Weatherseal Plug
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (optional)
- External Breather Tube
Part Number: TRB1824DT051
Model: TRB1824DT

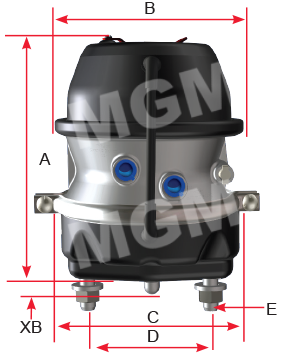

| Stroke | 2.50" (63.5 mm) |
| Weight lb. (kg) | 15.8 lb (7.02 kg) |
| A | 8.81" (223.8 mm) |
| B | 7.34" (186.4 mm) |
| C | 6.85" (174.0 mm) |
| D | 4.75" (120.7 mm) |
| E | M16 x 1.5 - 6g |
| Ports | 3/8" - 18 NPTF |
| XB | 15 mm |
Part Number: TRB1824DT051
Model: TRB1824DT
No replacement parts found.
Disclaimer:
If you are using an aftermarket replacement part number for the replacement of an OEM part number, the port and clamp band angles may need to be rotated and the push rod may need to be cut to length. In addition, our aftermarket part numbers come standard with no yoke assembly.
Replacement parts may differ for production part numbers. If you are uncertain that the replacement part listed will work in your unit, please contact us via Live Chat or by calling customer service at 1-800-527-1534 Ext. 6021.
Images may not be actual configuration.
