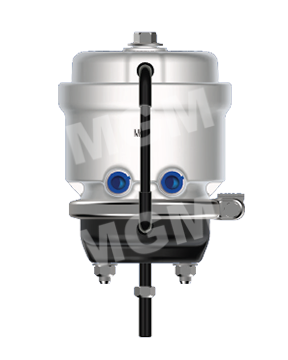

MJS1216AT051 / MJS1216AT
S-Cam Brakes (Drum)
Piston - Parking Brakes
Breather Tube
Stock Status: In Stock
Price: $690.93
Service Size: 12
Spring Size: 16
Specs
Aftermarket Unit
Mounting Bolt Thread: 7/16-14
Mounting Bolt Length (in.): 1.170
Port Size: 3/8-18 NPTF
Stroke (in.): 1.75
MJS 1.75" (44.5 mm) Model Features
- Lightweight, Rugged Aluminum Hosing and Head
- Epoxy-Coated power Spring
- External Breather Tube
- Integral Release Bolt
- Epoxy Coated Return Spring
- Polymer Push-Rod Guides
- Molded Nitrile Rubber Push-Rod Air Seal
- Low Friction Piston and Guide
- Heavy Duty Nylon Reinforced Diaphragms
Part Number: MJS1216AT051
Model: MJS1216AT

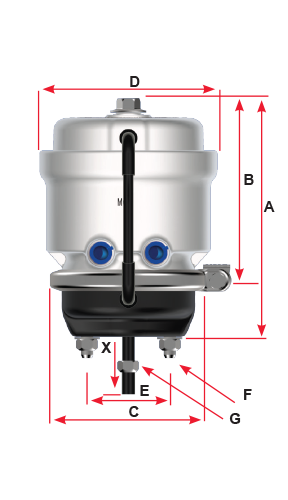

| Stroke | 1.75" (44.5 mm) |
| Weight lb (kg) Combination | 12.5 lb (5.7 kg) |
| Weight lb (kg) Single | 8.70 lb (3.9 kg) |
| A | 8.62" (218.9 mm) |
| B | 6.59" (167.4 mm) |
| C | 5.70" (144.8 mm) |
| D | 6.46" (164.1 mm) |
| E | 3.00" (76.2 mm) |
| F | 7/16" - 14 UNC |
| G | 1/2" - 20 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Part Number: MJS1216AT051
Model: MJS1216AT
| 1 | Kit _Chamber (a) | 9015242 |
| 2 | Kit -Nuts & Bolts | 9003002 |
| 3 | Clamp Band Assembly | 8216012 |
| 4 | Diaphragm | 8017312 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064010 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | 9064034 |
| 6 | Return Spring | 8068007 |
| 7 | NP Chamber Assembly (a) | 8215198 |
| 8 | Kit -Nuts & Washers SAE | 9002003 |
| 9 | Hex Nut -Yoke SAE | 8130011 |
| 9a | Hex Nut -Yoke METRIC | 8130016 |
| 10 | Kit -Breather Tube | 9081001 |
| 11 | Kit -Piggyback Plus SAE | MJS1216AT008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
5074 Discover the Difference, IHI/MGM Brakes Corporate Brochure
5002 Spring Brake "Choices" Brochure
5034 Magnum Performance Plus (J-Series) Brochure
03-004 Procedure for Determining Correct Push-Rod Length - Field Replacement
04-001 Type 12 Diaphragms - S-Cam & Wedge Installations
Disclaimer:
If you are using an aftermarket replacement part number for the replacement of an OEM part number, the port and clamp band angles may need to be rotated and the push rod may need to be cut to length. In addition, our aftermarket part numbers come standard with no yoke assembly.
Replacement parts may differ for production part numbers. If you are uncertain that the replacement part listed will work in your unit, please contact us via Live Chat or by calling customer service at 1-800-527-1534 Ext. 6021.
Images may not be actual configuration.
