3531054 / TR3030TS
S-Cam Brakes (Drum)
Double Diaphragm - Std Stroke - Parking Brakes
Breather Tube, Severe Service
Stock Status: Made to order
Lead Time: 27 days
Price: $287.63
Service Size: 30
Spring Size: 30
Specs
Production Unit
Port Size: 3/8-18 NPTF
Threaded Yoke
Stroke (in.): 2.50
TR-TS Model Features
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- 360 Aluminum Center Case
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3036 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- External Breather Tube
- Epoxy-Coated Piston & Center Case -Inside & Out
- Center Hole Diaphragm, Type 30 Spring Side Models Only
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Part Number: 3531054
Model: TR3030TS
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Combination | 19.4 lb (8.8 kg) |
| Weight lb (kg) Single | N/A |
| A | 9.04" (229.6 mm) |
| B | 6.66" (169.2 mm) |
| C | 8.31" (211.1 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
Part Number: 3531054
Model: TR3030TS
| Production Unit: | Call Customer Service for available replacement parts. |
5074 Discover the Difference, IHI/MGM Brakes Corporate Brochure
5002 Spring Brake "Choices" Brochure
5003 Fast Brake Trouble-Shooting Guide
5023 TR Model Features & Benefits
5059 Popular Parts Reference Guide
5092 "Corrosion Fighter" Technology
BT-1 Industry Safety Reminder - Danger of Double Clamp Banded Brakes Brochure
02-002 Mixing Standard & Long Stroke Chambers
03-004 Procedure for Determining Correct Push-Rod Length - Field Replacement
04-005 Replacing Piggyback Chambers - 2.5 inch stroke vs. 3.0 inch stroke
Aftermarket Replacement

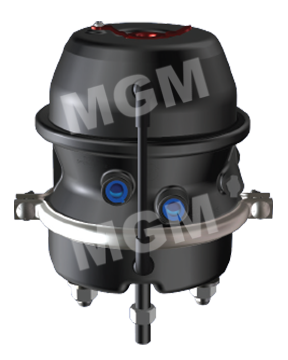

3531051 / TR3030TS
Disclaimer:
If you are using an aftermarket replacement part number for the replacement of an OEM part number, the port and clamp band angles may need to be rotated and the push rod may need to be cut to length. In addition, our aftermarket part numbers come standard with no yoke assembly.
Replacement parts may differ for production part numbers. If you are uncertain that the replacement part listed will work in your unit, please contact us via Live Chat or by calling customer service at 1-800-527-1534 Ext. 6021.
Images may not be actual configuration.
