3233051 / TR3030LP3THD
S-Cam Brakes (Drum)
Double Diaphragm - Long Stroke - Parking Brakes
Breather Tube, Heavy Duty
Stock Status: In Stock
Price: $280.44
Service Size: 30
Spring Size: 30
Specs
Aftermarket Unit
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
TR-LP3THD Model Features
- Tamper Resistant Design
- Center Hole Diaphragm
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Molded Nitrile Rubber Air Seal
- External Breather Tube
- Heavy Duty Power Spring 145 lb (65.8 ks) Of Additional Parking Bake Force @ 1.25 inches (31.8 mm) of Stroke
- Composite Guide -Corrosion Fighter Technology
Part Number: 3233051
Model: TR3030LP3THD
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 20.4 lb (9.3 kg) |
| Weight lb (kg) Single | 11.7 lb (5.3 kg) |
| A | 9.99" (253.7 mm) |
| B | 7.61" (193.3 mm) |
| C | 8.32" (211.3 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Part Number: 3233051
Model: TR3030LP3THD

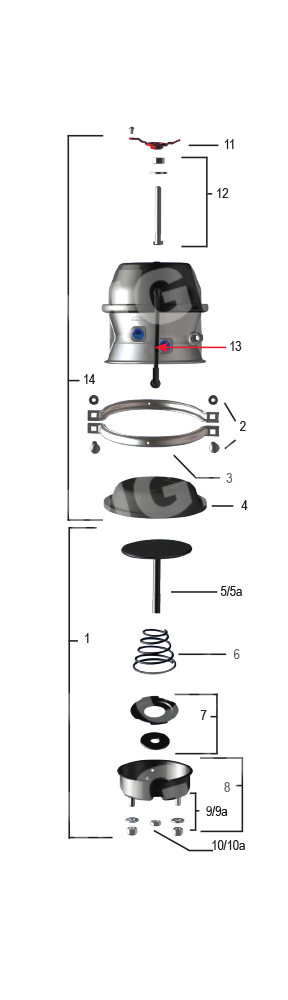

| 1 | Kit -NP Chamber (a) | 9015218 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017830 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064008 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | 9064028 |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 9015122 |
| 9 | Kit -Nuts & washers SAE | 9002001 |
| 9a | Kit -Nuts & Washer METRIC | 9002002 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | 8130016 |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
| 13 | Kit -Breather Tube | 9081001 |
| 14 | Kit -Piggyback Plus SAE | 3233008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
5074 Discover the Difference, IHI/MGM Brakes Corporate Brochure
5002 Spring Brake "Choices" Brochure
5003 Fast Brake Trouble-Shooting Guide
5087 HDW Models: Anti-Vibration Brakes
5092 "Corrosion Fighter" Technology
BT-1 Industry Safety Reminder - Danger of Double Clamp Banded Brakes Brochure
02-002 Mixing Standard & Long Stroke Chambers
03-004 Procedure for Determining Correct Push-Rod Length - Field Replacement
04-005 Replacing Piggyback Chambers - 2.5 inch stroke vs. 3.0 inch stroke
Disclaimer:
If you are using an aftermarket replacement part number for the replacement of an OEM part number, the port and clamp band angles may need to be rotated and the push rod may need to be cut to length. In addition, our aftermarket part numbers come standard with no yoke assembly.
Replacement parts may differ for production part numbers. If you are uncertain that the replacement part listed will work in your unit, please contact us via Live Chat or by calling customer service at 1-800-527-1534 Ext. 6021.
Images may not be actual configuration.
