3231551 / TR3030LP3T
Specialty Brakes
Intraax and Vantraax suspension systems
Breather Tube
Stock Status: Made to order
Lead Time: 21 days
Price: $274.85
Service Size: 30
Spring Size: 30
Specs
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.540
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
Intraax and Vantraax
TR-LP3T Model Features
- Tamper Resistant Design
- Long Life Power Spring
- Center Hole Diaphragm
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Molded Nitrile Rubber Air Seal
- External Breather Tube
- Composite Guide -Corrosion Fighter Technology
Part Number: 3231551
Model: TR3030LP3T
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 20.1 lb (9.1 kg) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |
| A | 9.99" (253.7 mm) |
| B | 7.61" (193.3 mm) |
| C | 8.32" (211.3 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 12.00" |
Part Number: 3231551
Model: TR3030LP3T
| 1 | Kit -Np Chamber (a) | N/A |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017830 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064551 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | N/A |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 9015122 |
| 9 | Kit -Nuts & Washers SAE | 9002001 |
| 9a | Kit -Nuts & Washers METRIC | N/A |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | N/A |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
| 13 | Kit- Breather Tube | 9081001 |
| 14 | Kit -Piggyback Plus SAE | 3231008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
5074 Discover the Difference, IHI/MGM Brakes Corporate Brochure
5002 Spring Brake "Choices" Brochure
5003 Fast Brake Trouble-Shooting Guide
5092 "Corrosion Fighter" Technology
BT-1 Industry Safety Reminder - Danger of Double Clamp Banded Brakes Brochure
02-002 Mixing Standard & Long Stroke Chambers
03-004 Procedure for Determining Correct Push-Rod Length - Field Replacement
04-005 Replacing Piggyback Chambers - 2.5 inch stroke vs. 3.0 inch stroke
Alternate Parts

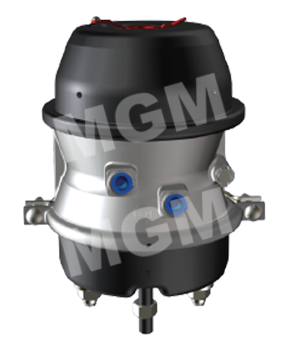

3232551 / TR3030LP3HD
3230551 / TR3030LP3
Disclaimer:
If you are using an aftermarket replacement part number for the replacement of an OEM part number, the port and clamp band angles may need to be rotated and the push rod may need to be cut to length. In addition, our aftermarket part numbers come standard with no yoke assembly.
Replacement parts may differ for production part numbers. If you are uncertain that the replacement part listed will work in your unit, please contact us via Live Chat or by calling customer service at 1-800-527-1534 Ext. 6021.
Images may not be actual configuration.
