3225008 / TR2430LP3T
S-Cam Brakes (Drum)
Double Diaphragm - Long Stroke - Parking Brakes
Breather Tube, Piggyback Plus
Stock Status: Made to order
Lead Time: 21 days
Price: $203.70
Service Size: 24
Spring Size: 30
Specs
Aftermarket Unit
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
TR-LP3T Model Features
- Tamper Resistant Design
- Long Life Power Spring
- Center Hole Diaphragm
- Epoxy-Coated Head
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm
- Heavy-Duty Nylon Reinforced Neoprene Diaphragm (Optional)
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- External Breather Tube
- Composite Guide -Corrosion Fighter Technology
Part Number: 3225008
Model: TR2430LP3T
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |

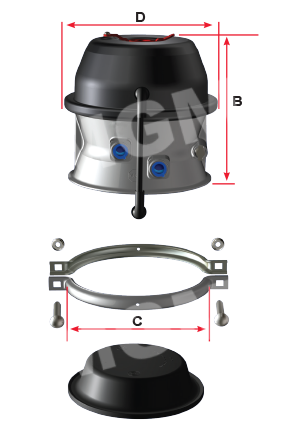

| B | 7.81" (198.4 mm) |
| C | 7.38" (187.5 mm) |
| D | 8.21" (208.5 mm) |
| Inlets | 3/8" - 18 NPTF |
Part Number: 3225008
Model: TR2430LP3T
| 1 | Kit -NP Chamber | N/A |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216025 |
| 4 | Diaphragm | 8017424 |
| 5 | Kit -Push-Rod Assembly SAE | N/A |
| 5a | Kit -Push-Rod Assembly METRIC | N/A |
| 6 | Return Spring | N/A |
| 7 | Kit -Center Hole Shield | N/A |
| 8 | NP Chamber Assembly | N/A |
| 9 | Kit -Nuts & Washers SAE | N/A |
| 9a | Kit -Nuts & Washers METRIC | N/A |
| 10 | Hex Nut -Yoke SAE | N/A |
| 10a | Hex Nut -Yoke METRIC | N/A |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
| 13 | Kit -Breather Tube | 9081001 |
P1296 Spring Brake Disposal Procedure / "Safe-T-Cylinder" Source Brochure
5074 Discover the Difference, IHI/MGM Brakes Corporate Brochure
5002 Spring Brake "Choices" Brochure
5003 Fast Brake Trouble-Shooting Guide
5092 "Corrosion Fighter" Technology
5011 Service Manual (TR, TR-T, TR-TS, TR-HD, TR-LP3)
90-001 Instructions for Spring Chambers/Piggybacks with "Breather Tube"
96-004 Breather Tube Extension Procedure
02-002 Mixing Standard & Long Stroke Chambers
04-003 Procedure to Re-tighten Service Actuator Clamp Band
04-004 Weatherseal Plus Installation Instruction
04-005 Replacing Piggyback Chambers - 2.5 inch stroke vs. 3.0 inch stroke
06-001 Breather Tube Extension using Clamps
Alternate Parts

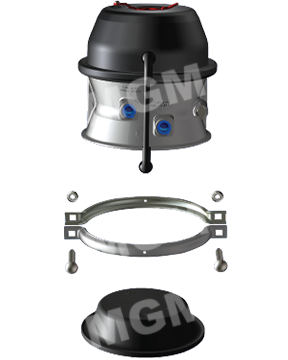

3227008 / TR2430LP3THD
Disclaimer:
If you are using an aftermarket replacement part number for the replacement of an OEM part number, the port and clamp band angles may need to be rotated and the push rod may need to be cut to length. In addition, our aftermarket part numbers come standard with no yoke assembly.
Replacement parts may differ for production part numbers. If you are uncertain that the replacement part listed will work in your unit, please contact us via Live Chat or by calling customer service at 1-800-527-1534 Ext. 6021.
Images may not be actual configuration.
