1428901 / C24L3
S-Cam Brakes (Drum)
Long Stroke - Service Chambers
AFTERMARKET UNIT
Stock Status: In Stock
Price: $137.13
Service Size: 24
Spring Size: N/A
Specs
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.550
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 3.00
CL Model Features
- Formed Steel Pressure Cap -Epoxy-Coated
- Formed Steel Non-Pressure Chamber -Epoxy-Coated
- Heavy-Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports -3/8" NPTF
- Center Hole Shield (except C16L 2.5)
Part Number: 1428901
Model: C24L3
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) | 9.72 lb (4.8 kg) |
| A | 5.30" (134.6 mm) |
| B | 4.22" (107.0 mm) |
| C | 7.37" (187.2 mm) |
| D | 4.75" (120.7 mm) |
| E | 5/8" - 11 UNC |
| Inlets | 3/8" - 18 NPTF |
| Y | 2.25" |
Part Number: 1428901
Model: C24L3

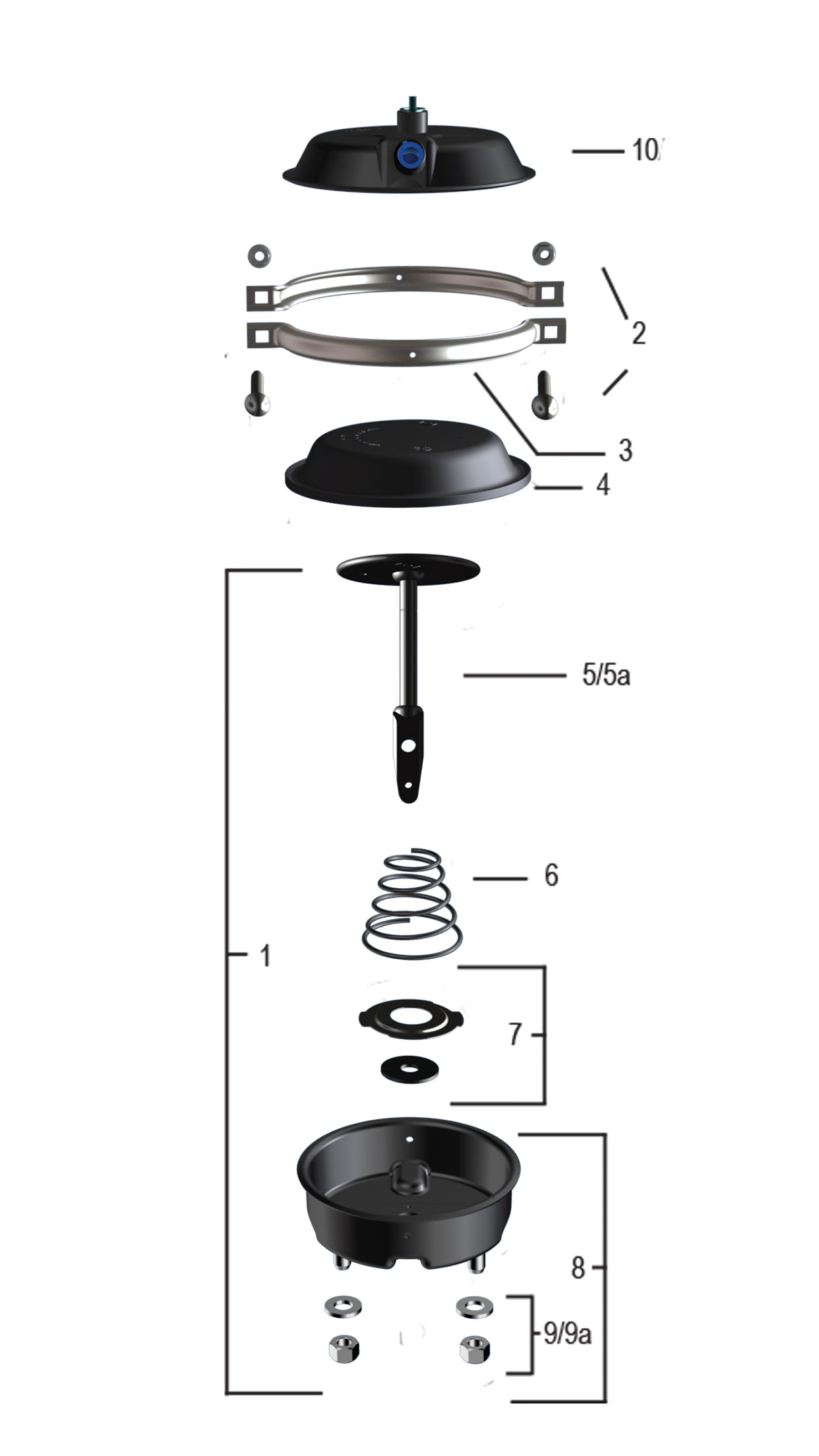

| 1 | Kit -NP Chamber (a) | N/A |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216025 |
| 4 | Diaphragm | 8017924 |
| 5 | Kit -Push-Rod Assembly (b) SAE w/ Welded Yoke | 9075002 |
| 6 | Return Spring | 8068017 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 8215224 |
| 9 | Kit - Nuts & Washers SAE | 9002001 |
| 10 | Hex Nut -Yoke SAE | N/A |
| 11 | Pressure Cap (2-inlet/steel | 8210026 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
4048 "C" Model Service Chamber Brochure
5074 Discover the Difference, IHI/MGM Brakes Corporate Brochure
5059 Popular Parts Reference Guide
02-002 Mixing Standard & Long Stroke Chambers
03-004 Procedure for Determining Correct Push-Rod Length - Field Replacement
04-005 Replacing Piggyback Chambers - 2.5 inch stroke vs. 3.0 inch stroke
Disclaimer:
If you are using an aftermarket replacement part number for the replacement of an OEM part number, the port and clamp band angles may need to be rotated and the push rod may need to be cut to length. In addition, our aftermarket part numbers come standard with no yoke assembly.
Replacement parts may differ for production part numbers. If you are uncertain that the replacement part listed will work in your unit, please contact us via Live Chat or by calling customer service at 1-800-527-1534 Ext. 6021.
Images may not be actual configuration.
